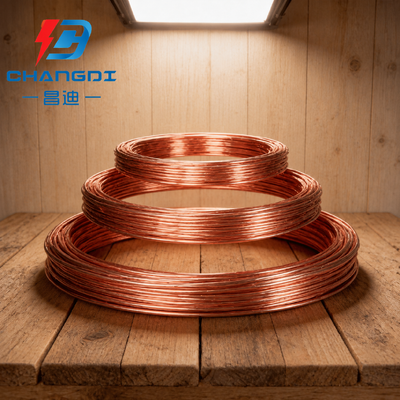

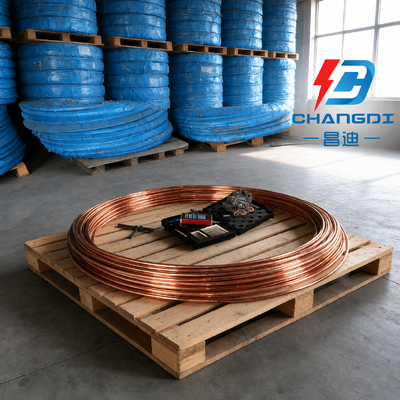

Copper Coated Steel Round Bar for Lightning Protection Systems
Product Details:
| Place of Origin: | Qingdao |
| Brand Name: | Changdi |
| Certification: | CE/ISO |
| Model Number: | 8*0.254*2000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable based on order quantity. |
| Packaging Details: | pallet OR wooden case packaging |
| Delivery Time: | 8-12days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/7DAYS |
|
Detail Information |
|||
| Manufacturing Craft: | Continuous Electroplating | Installationmethod: | Driven Into The Ground |
|---|---|---|---|
| Surfacefinish: | Bright, Smooth Copper Coating | Shieldingeffectiveness: | Good |
| Thread Size: | 5/8 Inch | Surface Finish: | Bright, Smooth Copper Coating |
| Length: | 1.2 Meters To 3 Meters | Tensilestrength: | 600 - 1200 MPa |
| Connection Type: | Threaded | Certifications: | UL Listed |
| Insulation Level: | Class I | Flexibility: | Good |
| Thread Type: | ISO Metric, UNC | Copper Layer: | 0.05mm- 0.254mm |
| Copper Thickness: | 0.25mm | ||
| Highlight: | copper coated steel round bar,lightning protection steel bar,copper clad steel wire |
||
Product Description
Copper Clad Steel Round Bar
Our Copper Clad Steel Round Bar is designed for electrical grounding and lightning protection systems. It combines the excellent conductivity and corrosion resistance of copper with the high mechanical strength of steel, providing reliable performance and long service life.
- Diameter: 8–20 mm, customized sizes available
- Copper thickness: 0.01–0.8 mm
- Excellent electrical conductivity and corrosion resistance
- High tensile strength and good mechanical performance
- Suitable for grounding grids, power systems, substations and lightning protection projects
- Available in straight bars or coils according to application
- Factory direct supply, stable quality and competitive prices
We support customized specifications according to your project requirements. Contact us for technical details, samples and quotation.
