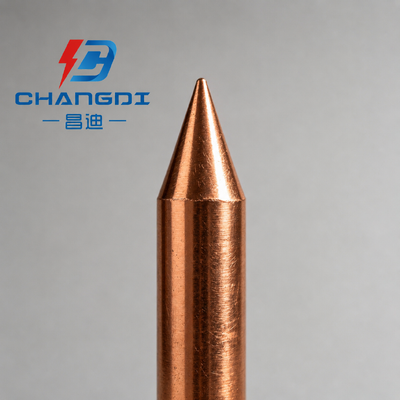

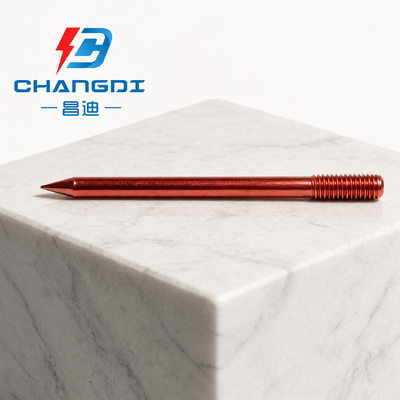

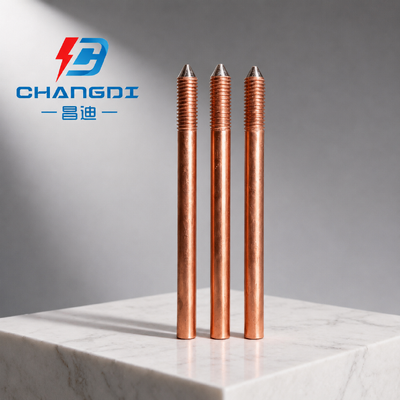

Copper Clad Steel Grounding Electrode for Electrical Earthing Projects
Product Details:
| Place of Origin: | Qingdao |
| Brand Name: | Changdi |
| Certification: | CE/ISO |
| Model Number: | 8*0.254*2000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable based on order quantity. |
| Packaging Details: | pallet OR wooden case packaging |
| Delivery Time: | 8-12days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/7DAYS |
|
Detail Information |
|||
| Copper Layer Adhesion: | ≥2.5N/mm | Yield Strength: | >800N/mm2 |
|---|---|---|---|
| Rod Diamater: | 15.8mm | Copper Thickness: | 0.25mm |
| Operatingtemperaturerange: | -40°C To 70°C | Color: | Copper Or Silver |
| Tensile Strength: | Greater Than 600N/mm2 | Installation Depth: | 1.5m |
| Elongation: | >15% | Insulation Level: | Class I |
| Warranty: | 2 Years | Corrosionresistance: | High |
| Raw Material: | Cold Draw High Quality Mild Steel | Thread Size: | 5/8 Inch |
| Finish: | Smooth | Conductivity: | Excellent Electrical Conductivity |
| Highlight: | Copper Clad Steel Grounding Electrode,Electrical Earthing Project Rod,Copper Clad Earth Rod |
||
Product Description

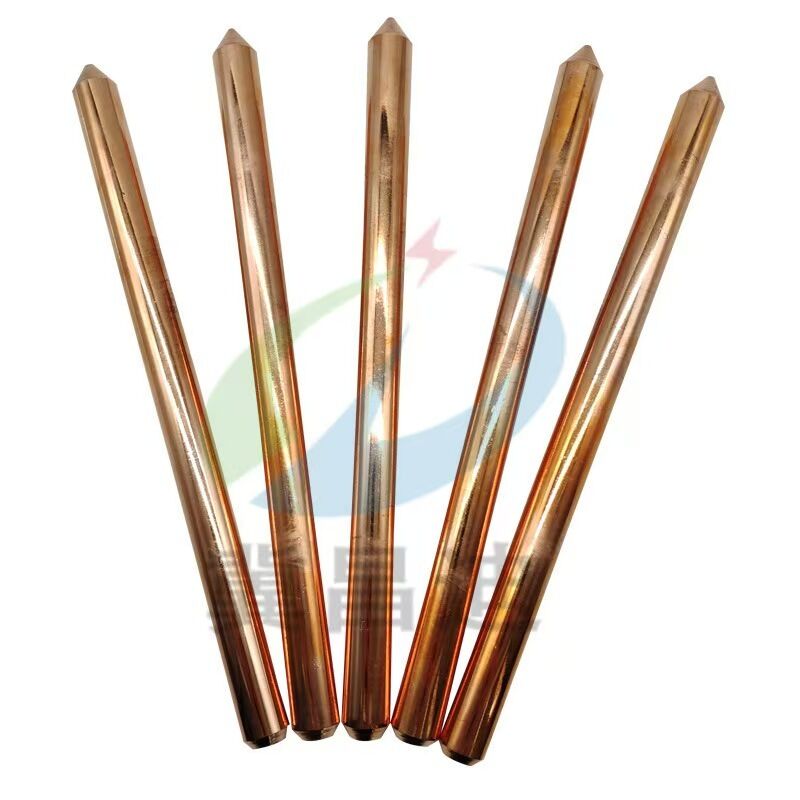

Copper Clad Steel Grounding Rod
Our Copper Clad Steel Grounding Rod is designed for reliable electrical grounding and lightning protection systems. It combines the excellent conductivity and corrosion resistance of copper with the high strength of steel, providing long-term and stable grounding performance.
-
Diameter: 8–20 mm
-
Copper thickness: 0.01–0.8 mm
-
Length: 1.5 m / 2 m / 3 m or customized
-
Excellent conductivity and corrosion resistance
-
High mechanical strength and easy installation
-
Suitable for buildings, substations, power systems and lightning protection projects
-
Customized specifications available
-
Factory direct supply with stable quality and competitive prices
Contact us for detailed specifications, samples and quotation.
