14.2mm Copper Clad Steel Vertical Earthing Rod with 0.254mm Copper Layer
Product Details:
| Place of Origin: | Qingdao |
| Brand Name: | Changdi |
| Certification: | CE/ISO |
| Model Number: | 8*0.254*2000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD1.18-559/PCS |
| Packaging Details: | pallet OR wooden case packaging |
| Delivery Time: | 8-12days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/7DAYS |
|
Detail Information |
|||
| Installationtype: | Driven Into The Ground | Product Type: | Threaded |
|---|---|---|---|
| Standardcompliance: | IEC 62561, BS 7430 | Elongation: | >15% |
| Operatingtemperaturerange: | -40°C To +70°C | Resistance: | Less Than 0.01 Ohm |
| Copper Layer: | 0.05mm- 0.254mm | Raw Material: | Cold Draw High Quality Mild Steel |
| Installation Method: | Screw | Length: | 1.2 Meters / 1.5 Meters / 2.4 Meters |
| Voltage Resistance: | ≤2.5KV | Protection Level: | IP68 |
| Copper Thickness: | 0.25mm | Temperature Range: | -40℃~+80℃ |
| Surfacetreatment: | Galvanized / Copper Plated | ||
| Highlight: | 14.2mm copper clad steel earthing rod,vertical earthing rod with copper layer,copper clad earth rod with warranty |
||
Product Description

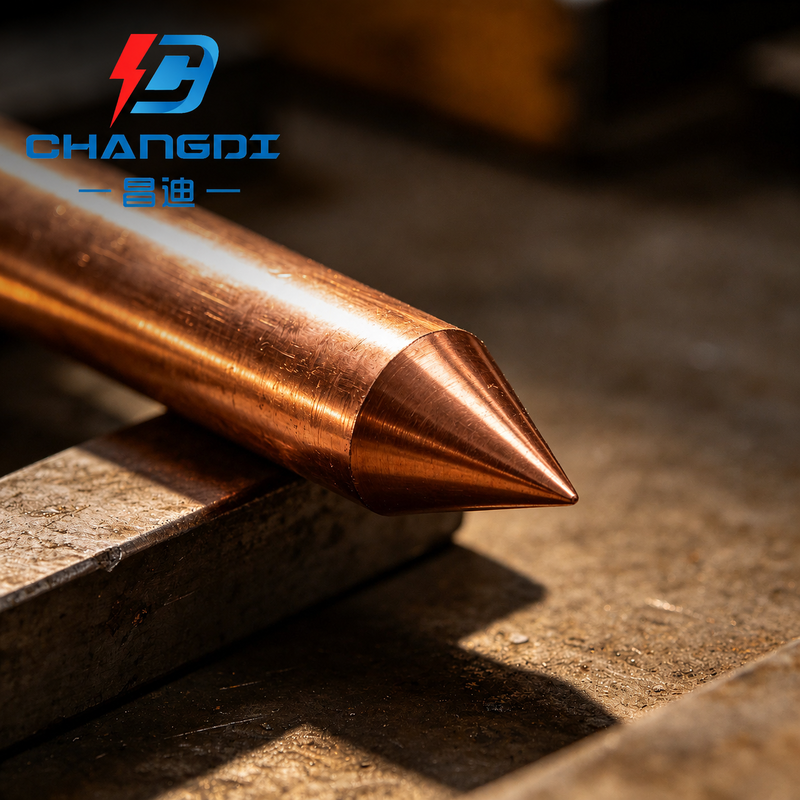

Copper Clad Steel Ground Rod
Changdi Power Equipment is an experienced manufacturer of grounding and lightning protection materials, supplying dependable products for electrical, construction, and energy projects worldwide.
Our Copper Clad Steel Ground Rod combines a durable steel core with a conductive copper layer, offering efficient current dissipation, good mechanical stability, and excellent resistance to soil corrosion. It is suitable for power substations, buildings, communication towers, solar farms, and other earthing applications.
Standard diameters are available from 12.7mm to 20mm, with copper layer thicknesses of 0.254mm–0.80mm. Lengths, thread types, and accessories can be customized for different installation requirements.
With direct factory production, we provide competitive pricing, consistent quality, flexible customization, and dependable lead times. Products are manufactured under an ISO 9001 quality management system, with inspection reports and technical documents available upon request.
Factory Direct | Stable Quality | Flexible Customization | Reliable Lead Time | Global Supply
