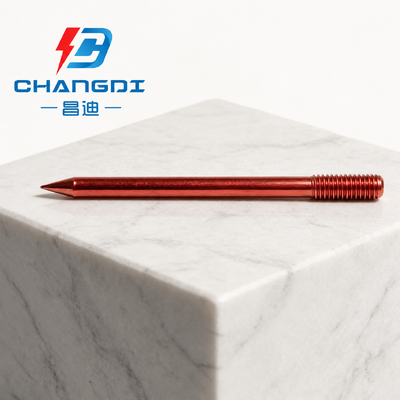

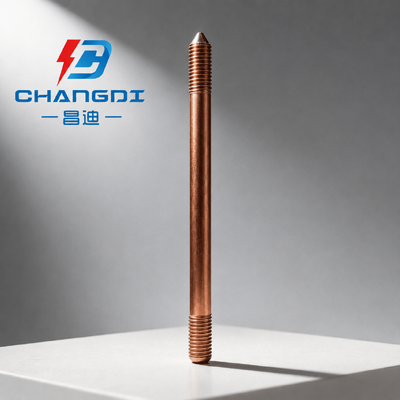

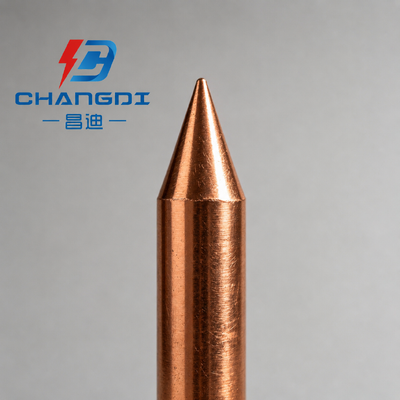

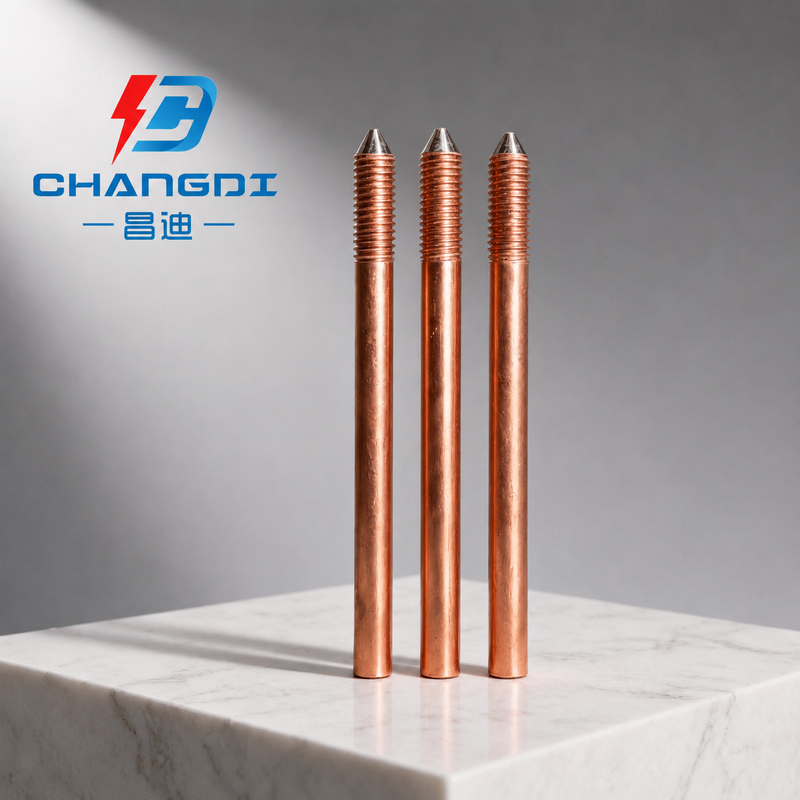

High Performance Copper Bonded Rod for Electrical Substations
Product Details:
| Place of Origin: | Qingdao |
| Brand Name: | Changdi |
| Certification: | CE/ISO |
| Model Number: | 8*0.254*2000mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD1.18-559/PCS |
| Packaging Details: | pallet OR wooden case packaging |
| Delivery Time: | 8-12days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/7DAYS |
|
Detail Information |
|||
| Thread Type: | ISO Metric | Installation Method: | Hammering Or Screw-in |
|---|---|---|---|
| Insulation Level: | Class I | Impact Strength: | >15J |
| Product Type: | One End Pointed, One End Flat | Elongation: | >15% |
| Tensile Strength: | 600 N/mm2 | Type: | Clad |
| Threadtype: | Threaded End For Coupling | Installation Depth: | 1.5m |
| Hardness: | HB180-240 | Copper Layer: | 0.05mm |
| Standardcompliance: | IEC 62561-2 | Rod Length: | 0.8M-6M |
| Productname: | Copper Clad Earth Rod | ||
| Highlight: | copper bonded rod for substations,copper clad earth rod with warranty,high performance grounding rod electrical |
||
Product Description
Changdi Power Equipment Co., Ltd. is a professional manufacturer specializing in lightning protection and grounding materials for over 10 years. Our main products include Copper Bonded Ground Rods, Copper Clad Steel Flat Bars, Copper Clad Steel Conductors, Exothermic Welding Products, Grounding Accessories, and Earthing Enhancement Materials. The company operates advanced production lines and strict quality control systems, with products manufactured in accordance with international standards and supported by ISO-certified management practices.
Our Copper Bonded Ground Rods are manufactured using a molecular bonding process that permanently bonds high-purity copper to a low-carbon steel core, ensuring excellent conductivity, mechanical strength, and long service life. The copper layer thickness can be customized according to project requirements, providing superior corrosion resistance even in aggressive soil conditions. With strong adhesion, low grounding resistance, and outstanding durability, our grounding rods are widely used in power substations, telecommunications, solar energy projects, railway systems, and lightning protection applications worldwide.
