Copper-Coated Steel Earth Rods for Electrical Earthing – Bulk Discounts
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | QDCD |
| Certification: | ISO |
| Model Number: | CCER006 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | USD1.18-559/PCS |
| Packaging Details: | pallet OR wooden case packaging |
| Delivery Time: | 8-12days |
| Payment Terms: | T/T |
| Supply Ability: | 10000PCS/7DAYS |
|
Detail Information |
|||
| Application: | Grounding System | Material: | Copper Clad Steel |
|---|---|---|---|
| Electrical Conductivity: | ≥20%IACS | Installation Depth: | 1.5m |
| Insulation Level: | Class I | Thread Length: | 37mm |
| Yield Strength: | >800N/mm2 | Voltage Resistance: | ≤2.5KV |
Product Description

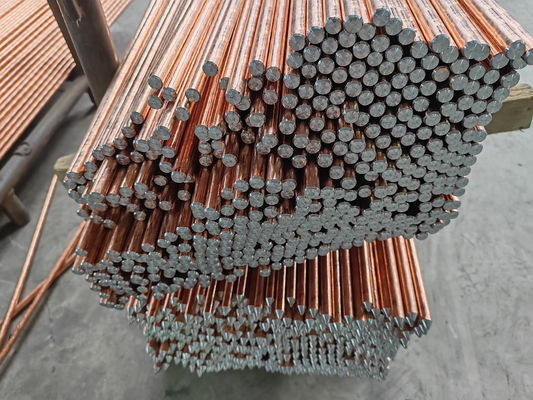

Copper-clad steel earth rods are widely used in grounding and earthing systems to provide a safe path for electrical currents to dissipate into the ground.
Advantages Over Other Materials:
- Cost-Effective: Cheaper than solid copper rods but offers similar performance.
- Durability: Resists mechanical stress during installation (hammering).
Installation Tips:
- Depth: Typically installed 2.4m–3m deep, but depends on soil resistivity.
- Multiple Rods: Spaced at least twice their length for optimal grounding.
- Connections: Use exothermic welding or high-pressure clamps for low-resistance joints.
