High Elongation Copper Clad Steel Plate with 3-6mm Thickness for Earthing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Qingdao Changdi |
| Certification: | ISO |
| Model Number: | CCSFS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By wooden case or pallet |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T |
| Supply Ability: | 2000-4000M/day |
|
Detail Information |
|||
| Surface: | Bright | Copper Thickness: | ≥0.254mm |
|---|---|---|---|
| Thickness: | 4mm | Width: | 30mm |
| Packing: | Standard Export Packing Or As Per Customer's Request | Standard: | GB/T 5231-2012, ASTM B152M-06 |
| Material: | Copper And Steel | Advantages: | High Strength, Good Conductivity, Excellent Corrosion Resistance |
| Highlight: | High Elongation Copper Clad Steel Plate,Earthing Copper Clad Steel Plate,3-6mm Copper Clad Steel Plate |
||
Product Description

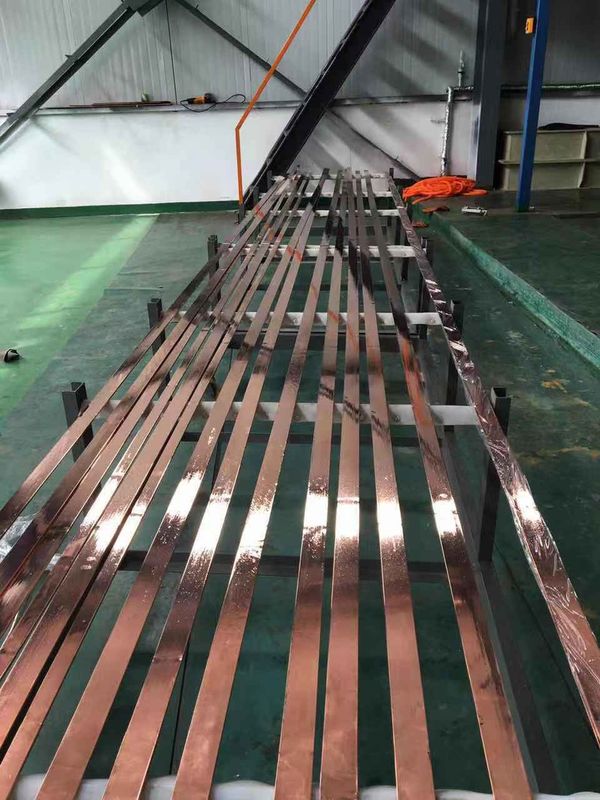

4mm Thick Copper Cladding Flat Steel with Elongation of ≥20%
Product Description:
Changdi provided the market with high quality copper-bonded ground rods. We has taken that same concept in copper
bonded steel tape (CBST) conductor and made this into a revolutionary new grounding conductor.
Its core is made of low carbon steel; This electro-plating process helps ensure a long-lasting molecular bond between the copper layer
and the steel.
The thickness of any point copper layer is larger than 254 μm to make sure the copper surface of the conductor provides high conductivity and corrosion resistance properties.
Copper bonded steel tape (CBST) is ideal for use in a variety of applications including lightning protection conductor, grounding conductor and equipotential bonding conductor.
Features:
• Superior corrosion resistance, application life of typically 40-50 years in most soil conditions
• Copper-bonded coating will not crack or tear when the conductor is bent
• The thickness of any point copper layer is larger than 254μ m to corrosion and provides a low-
resistance path to ground
• Meets the requirements of IEC® 62305-3 Edition 2 and GB-50057-2010 for lightning protection application
| Property | Value |
|---|---|
| Product Name | Copper-Clad Steel Flat, Copper-Coated Steel Flat, Copper Cladding Steel Tape |
| Copper Adhesion | ≥Grade 1 |
| Copper Content | ≥0.5% |
| Hardness | ≤HV200 |
| Surface | Bright |
| Width | 25-60mm |
| Elongation | ≥20% |
| Tensile Strength | ≥400Mpa |
| Copper Thickness | ≥0.254mm |
| Thickness | 3-6mm |
| Copper Uniformity | ≥Grade 1 |
Applications:
Copper-Clad Steel Flat, produced by Qingdao Changdi with model number CCSFS, is certified with ISO. It is provided in Negotiable Minimum Order Quantity and negotiable price. It is packed by wooden case or pallet and delivery time is 20-25days. Payment terms is T/T and Supply Ability is 2000-4000M/day. The thickness of Copper-Clad Steel Flat is 3-6mm, raw material is Cold Draw High Quality Mild Steel, copper uniformity is ≥Grade 1, width is 25-60mm and copper content is ≥0.5%.
Customization:
Qingdao Changdi offers a range of custom services for Copper Clad Flat Steel. Our Copper-Coated Steel Flat is made from Cold Draw High Quality Mild Steel, with a hardness of ≤HV200 and an elongation of ≥20%. It can be customized to your specifications in thicknesses of 3-6mm, and comes with copper uniformity of Grade 1. With a minimum order quantity of Negotiable and a price of Negotiable, we can deliver 2000-4000M/day. Packaging is offered in wooden case or pallet, with delivery time of 20-25days and payment terms of T/T. We have ISO certification, guaranteeing the highest quality.
FAQ:
- Q: What is Copper Clad Flat Steel?
A: Copper Clad Flat Steel is a kind of metallic material made of carbon steel and copper. - Q: What is the Brand Name?
A: The Brand Name is Qingdao Changdi. - Q: What is the Model Number?
A: The Model Number is CCSFS. - Q: Where is it produced?
A: It is produced in China. - Q: Does it have certification?
A: Yes, it has ISO certification.
