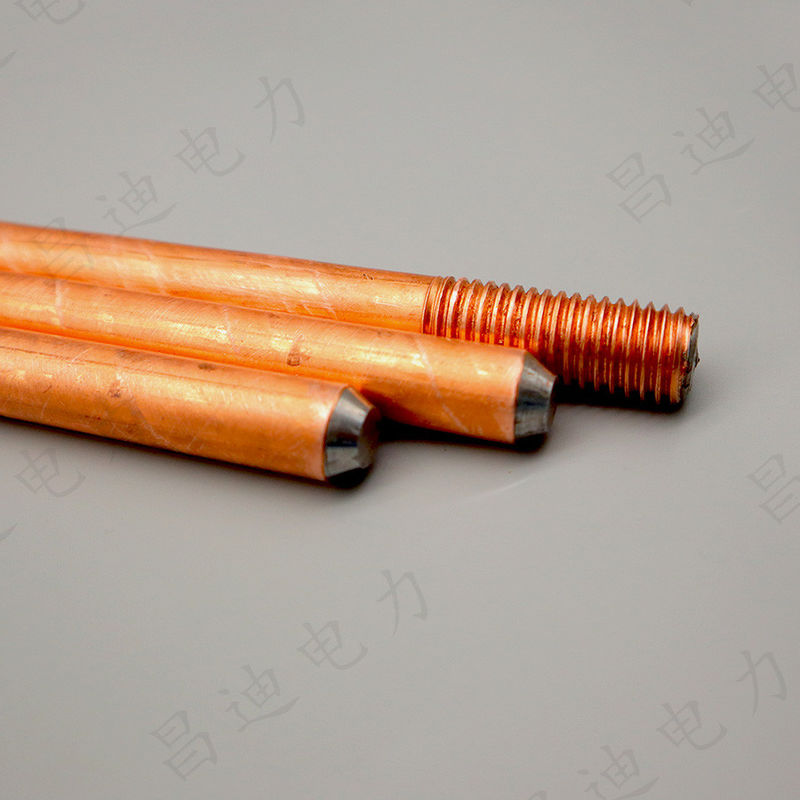

• 40mm Thread Copper Bonded Earthing Rod Electrode
40mm Thread Copper Bonded Earthing Rod Electrode

40mm Thread Copper Bonded Earthing Rod Electrode

Product Details:

Place of Origin: CHINA
Brand Name: QDCD
Certification: ISO
Model Number: CCSER

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: By wooden case or pallet
Delivery Time: 20-25days
Payment Terms: T/T
Supply Ability: 1000pcs/day
Get Best Price Contact Now

Detail Information

Product Type: One End Pointed, One End Flat, With Two Threads Head Type: Pointed Or Threaded
Length: 4ft Diameter: 16mm
Package: Carton Thread Type: M8
Weight: 1.6kg Copper Layer: ≥0.254mm
Highlight:

ground rod bonding

,

earth bonding rod

,

copper bonded electrode

Product Description

16mm Copper-Bonded Steel Earth Rod with 40mm Thread Length

Product Description:

The steel core is sometimes coated with copper, producing such products as copper-clad steel bars (for sole use in vertical grounding electrodes), copper-clad steel tapes, and copper-clad steel wires in both round and stranded forms.

These products can be categorized according to their production processes. They can be produced either by continuous casting or electroplating.



Features:

The copper-clad-steel grounding material is cost effective, and much cheaper than the pure copper rod. Its uniform copper layer ensures a high tensile strength, and promises a coating that will not crack or take off when the conductor is bent. This provides high efficiency when reducing the resistance. In fact, the length of the horizontal grounding body can be reduced by 1/3 for the design of the high-resistance section, significantly reducing the excavation amount of the earthwork.



Technical Parameters:

Item Description
Manufacturing craft Continuous Plating
Diameter 16mm
Product Name 16mm Earth Rod
Thread Length 40mm
Head Type Pointed Or Threaded
Thread Type M8
Package Carton
Surface Treatment Copper Plating
Product Type One End Pointed, One End Flat, With Two Threads
Application Grounding System


Applications:

First, it is necessary to keep metal parts of electrical devices, which does not carry the current, properly connected to the ground system in order to maintain them at the zero potential.

Second, numerous paths must be provided to the strong current, caused by lightning or surge, in order to disperse a large number of electrons into the ground quickly.

Third, the guiding of leakage current, which may be produced or stored on the casing of the equipment, to the ground is also necessary. Thereby, when the power supply system's ground wire is linked to the distributing box, it is able to bring the electric fault to the National VI protection device.



Customization:

Customized 16mm Earth Rod
  • Brand Name: QDCD
  • Model Number: CCSER
  • Place of Origin: CHINA
  • Certification: ISO
  • Minimum Order Quantity: Negotiable
  • Price: Negotiable
  • Packaging Details: By wooden case or pallet
  • Delivery Time: 20-25days
  • Payment Terms: T/T
  • Supply Ability: 1000pcs/day
  • Thread Length: 40mm
  • Material: Copper-Bonded Steel
  • Manufacturing craft: Continuous Plating
  • Diameter: 16mm
  • Weight: 1.6kg

QDCD is a renowned 16mm Earth Rod, 16mm Earth Stake, and 16mm Earth Rod Manufacturer.



Support and Services:

16mm Earth Rod Technical Support and Services

Our 16mm Earth Rods are designed for maximum performance and durability. To ensure that you get the most out of your product, we provide the following technical support and services:

  • On-site installation and troubleshooting services
  • 24/7 customer service and technical support
  • Online resources with FAQs, installation guides, and product manuals
  • Replacement parts and upgrades
  • Warranty and maintenance services


Packing and Shipping:

Packaging and Shipping

16mm Earth Rods are securely packaged in strong cardboard boxes, with each box containing a maximum of 10 rods. The rods are further secured with bubble wrap before despatch. The boxes are labelled with the product name and the size of the rods.

Shipping for the 16mm Earth Rods is via national and international carriers, with delivery within 3-5 working days.



FAQ:

Q: What is the brand name of the 16mm Earth Rod?
A: The brand name of the 16mm Earth Rod is QDCD.
Q: What is the model number of the 16mm Earth Rod?
A: The model number of the 16mm Earth Rod is CCSER.
Q: Where is the 16mm Earth Rod made?
A: The 16mm Earth Rod is made in China.
Q: Is the 16mm Earth Rod certified?
A: The 16mm Earth Rod is certified by ISO.
Q: What is the minimum order quantity for the 16mm Earth Rod?
A: The minimum order quantity for the 16mm Earth Rod is negotiable.
