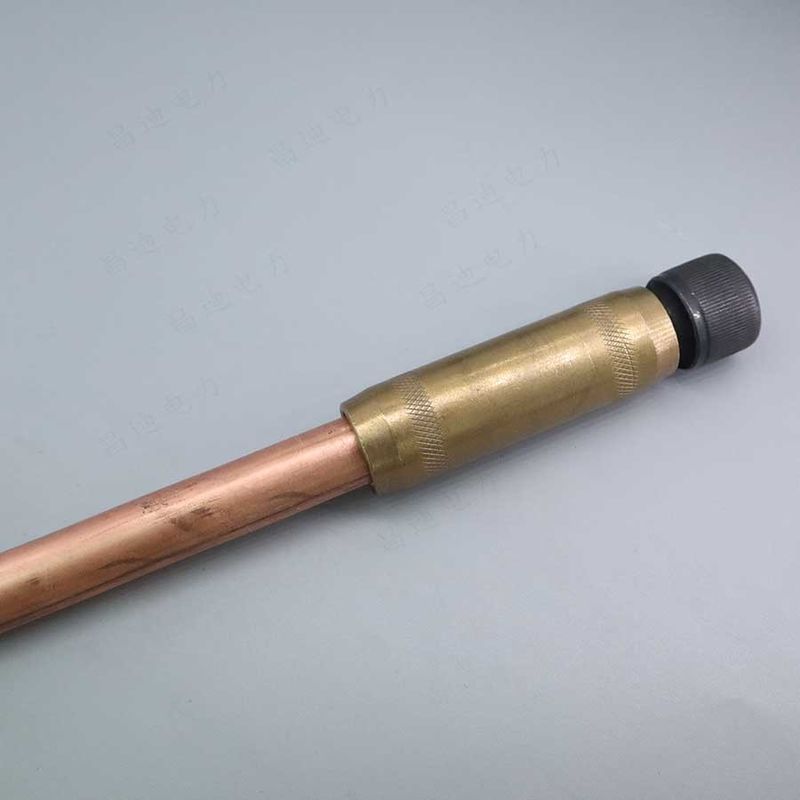

1.2m 4ft Brass Earth Rod Coupling 6mm Ground Driving Head
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | QDCD |
| Certification: | ISO |
| Model Number: | CCSER |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By wooden case or pallet |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Material: | Copper-Bonded Steel | Tensile Strength: | 450-600MPA |
|---|---|---|---|
| Surface Treatment: | Copper Plating | Product Type: | One End Pointed, One End Flat, With Two Threads |
| Copper Layer: | ≥0.254mm | Length: | 6ft |
| Package: | Carton | Head Type: | Threaded |
| High Light: | 1.2m earth rod,4ft earth rod,4ft ground rod |
||
Product Description
4ft Earth Rod 16mm Copper Plated Copper-Bonded Steel with Coupler and Driving Head
Product Description:
The core material of steel is usually coated with a uniform layer of copper, forming what is known as copper-clad steel. Copper-clad steel comes in many forms, including bar (used only for vertical grounding electrodes), tape, and wire (either single or stranded). There are two types of copper-clad steel; continuous casting and electroplating.
Continuous casting copper-clad steel begins with a steel rod that is covered with molten copper. This accomplishes a perfect bond between the two materials. The copper-clad steel bar then passes through a roller die to shape and size the bar.
Electroplating copper-clad steel is coated by a process referred to as electroplating. It involves immersing the steel core in a bath of molten copper and running a low voltage current through the bath. This causes the copper to deposit onto the steel, forming a copper coated steel. This type of copper-clad steel is usually used for tape and wire because of its superior ability to conform to shapes.
Features:
The copper-clad-steel grounding material is a cost effective solution compared to using pure copper rod. It provides high tensile strength and a uniform copper layer. The copper layer will not crack or come off when the conductor is bent, ensuring that the material retains its endurance and capacity. Additionally, due to this material's high efficiency in reducing resistance, the horizontal grounding body length can be reduced by a third, greatly decreasing the amount of excavation required for the earthworks.
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | 16mm Earth Rod |
| Material | Copper-Bonded Steel |
| Length | 4ft |
| Weight | 1.6kg |
| Head Type | Pointed Or Threaded |
| Thread Type | M8 |
| Thread Length | 40mm |
| Copper Layer | ≥0.254mm |
| Product Type | One End Pointed, One End Flat, With Two Threads |
| Application | Grounding System |
Applications:
First, maintain good contact with the earth so that the non-current-carrying metal parts of the electrical device connected to the ground system are kept at zero potential. This is done by providing a grounding conductor, which establishes a direct path for stray electrical charges or currents to be safely directed into the ground.
Second, provide many paths for the strong current caused by lightning or surge on the line, so that a large number of electrons can be dissipated into the earth as soon as possible. This can be accomplished through the implementation of surge protection devices equipped with a diverse array of conductors and resistors. These components are responsible for diverting excess electrical energy away from sensitive electronic equipment and safely to the earth.
Third, guide the leakage charge that may be generated or accumulated on the equipment casing to the ground. In the fault state, when the ground wire of the power supply system is connected to the distribution box, its function is to guide the fault current to the National VI protection device. This is done with the installation of a leakage circuit breaker. The breaker functions to disconnect power to the equipment when an excessive leakage current is detected, thus eliminating the chance of an electrocution hazard.
Customization:
- Brand Name: QDCD
- Model Number: CCSER
- Place of Origin: CHINA
- Certification: ISO
- Minimum Order Quantity: Negotiable
- Price: Negotiable
- Packaging Details: By wooden case or pallet
- Delivery Time: 20-25days
- Payment Terms: T/T
- Supply Ability: 1000pcs/day
- Tensile strength: 450-600MPA
- Product Name: 16mm Earth Rod
- Application: Grounding System
- Copper layer: ≥0.254mm
- Thread Length: 40mm
Keywords: 16mm_Grounding_Rod, 16mm_Earthing_Rod, 16mm_Earthing_Rod
Support and Services:
We provide technical support and services to ensure that your 16mm Earth Rod works properly and efficiently.
Our technical support team is available 24/7 and can be reached by phone, email or live chat. We are also able to provide remote troubleshooting and assistance with installation.
In addition to technical support, we provide a range of services including product maintenance, warranty extensions, spare parts and more. Our experienced technicians are able to perform repairs and maintenance on your 16mm Earth Rod.
If you have any questions or need technical assistance, please feel free to contact us.
```Packing and Shipping:
The 16mm Earth Rod is packaged and shipped in a secure and sturdy box. The box is designed to protect the rod from any damage during shipping.
The box is made of high-quality materials, and the edges are sealed to ensure its longevity and strength during transit.
The rod is securely packed in the box with foam padding or other protective material to protect it from shocks and other potential damages.
The box is labeled with the product name, specifications, and other important information so that it is easy to identify when the package arrives.
The box is then sealed and shipped to its destination via a reliable courier service.
