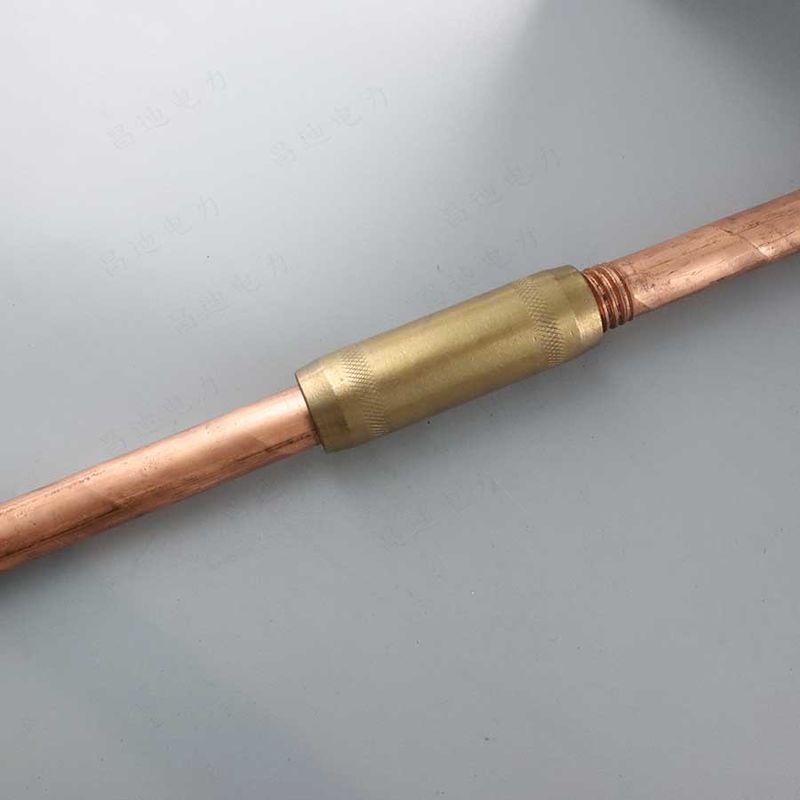

Grounding System 16mm Earth Rod Threaded with Coupler
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | QDCD |
| Certification: | ISO |
| Model Number: | CCSER |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | By wooden case or pallet |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
|
Detail Information |
|||
| Thread Type: | M8 | Diameter: | 16mm |
|---|---|---|---|
| Application: | Grounding System | Material: | Copper-Bonded Steel |
| Weight: | 1.6kg | Product Type: | One End Pointed, One End Flat, With Two Threads |
| Product Name: | 16mm Earth Rod | Package: | Carton |
Product Description
Product Description:
Copper-clad steel has become a popular material used in the production of grounding electrodes due to the combination of steel's strength and copper's conductivity. It can be made into various forms, including copper-clad steel bars, tapes and wires. These forms can be further divided depending on their production process into continuous casting and electroplating copper-clad steel.
Continuous casting copper-clad steel involves the steel core undergoing periodic cooling through a blast of air and spray the molten copper material on the steel surface. This results in the production of a thick and uniform copper coating. The electroplating copper-clad steel involves the formation of a thin copper sheet, which is then rolled and sealed onto the steel core.
The superior strength of steel and superior conductivity of copper make copper-clad steel the ideal material for the production of grounding electrodes. It is widely used for in electrical, safety, and energy conservation applications.
Features:
The copper-clad-steel grounding material used for the construction of the grounding system is an effective and cost-efficient solution compared to the use of pure copper rod.
It has a uniformly thick layer of copper coating on the conductor and features high tensile strength. Unlike other copper-clad materials, this particular one does not crack or take of when bent.
Moreover, this material has a high efficiency in reducing the resistance, meaning that the length of the horizontal grounding body can be reduced by 1/3 for the design of the high-resistance section - thereby greatly reducing the amount of excavation of earthwork required.
Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | 16mm Earth Rod |
| Length | 4ft |
| Package | Carton |
| Tensile strength | 450-600MPA |
| Weight | 1.6kg |
| Thread Type | M8 |
| Material | Copper-Bonded Steel |
| Thread Length | 40mm |
| Manufacturing craft | Continuous Plating |
| Product Type | One End Pointed, One End Flat, With Two Threads |
Applications:
First, it is necessary to maintain good contact with the ground in order for the non-current-carrying metal parts of electrical devices to remain at a zero potential. This ensures that the strong current, generated due to lightning or surges on the line, is dispersed into the Earth quickly.
Second, providing numerous paths for these strong currents enables a large number of electrons to be dissipated into the Earth. This ensures that the leakage charges generated or accumulated on the equipment casing are guided to the ground. When the ground wire of the power supply system is connected to a distribution box, its primary function is to guide the fault current to the National VI protection device.
Customization:
16mm Earth RodBrand Name: QDCD Model Number: CCSER Place of Origin: CHINA Certification: ISO
Minimum Order Quantity: Negotiable Price: Negotiable Packaging Details: By wooden case or pallet
Delivery Time: 20-25days Payment Terms: T/T Supply Ability: 1000pcs/day
Manufacturing craft: Continuous Plating Product Name: 16mm Earth Rod Application: Grounding System
Head Type: Pointed Or Threaded Thread Type: M8
Support and Services:
Technical support and service for 16mm Earth Rod includes:
- 24/7 customer service
- Live chat and email support
- Free product installation and tutorial videos
- Troubleshooting and maintenance advice
- Warranty and repair services
Packing and Shipping:
The 16mm Earth Rod is packaged in individual boxes secured with bubble wrap. It is then placed in a box filled with packing peanuts to ensure stability during shipping. The box is then sealed and labeled with the customer's information.
The package is shipped via a reliable carrier such as FedEx or UPS. Shipping costs are based on the weight and size of the package.
FAQ:
- Q: What is the Brand Name of the 16mm Earth Rod?
- A: The Brand Name of the 16mm Earth Rod is QDCD.
- Q: What is the Model Number of the 16mm Earth Rod?
- A: The Model Number of the 16mm Earth Rod is CCSER.
- Q: Where is the 16mm Earth Rod made?
- A: The 16mm Earth Rod is made in China.
- Q: Does the 16mm Earth Rod have a Certification?
- A: Yes, the 16mm Earth Rod has an ISO Certification.
- Q: What is the Minimum Order Quantity for the 16mm Earth Rod?
- A: The Minimum Order Quantity for the 16mm Earth Rod is Negotiable.
